Grounding solution

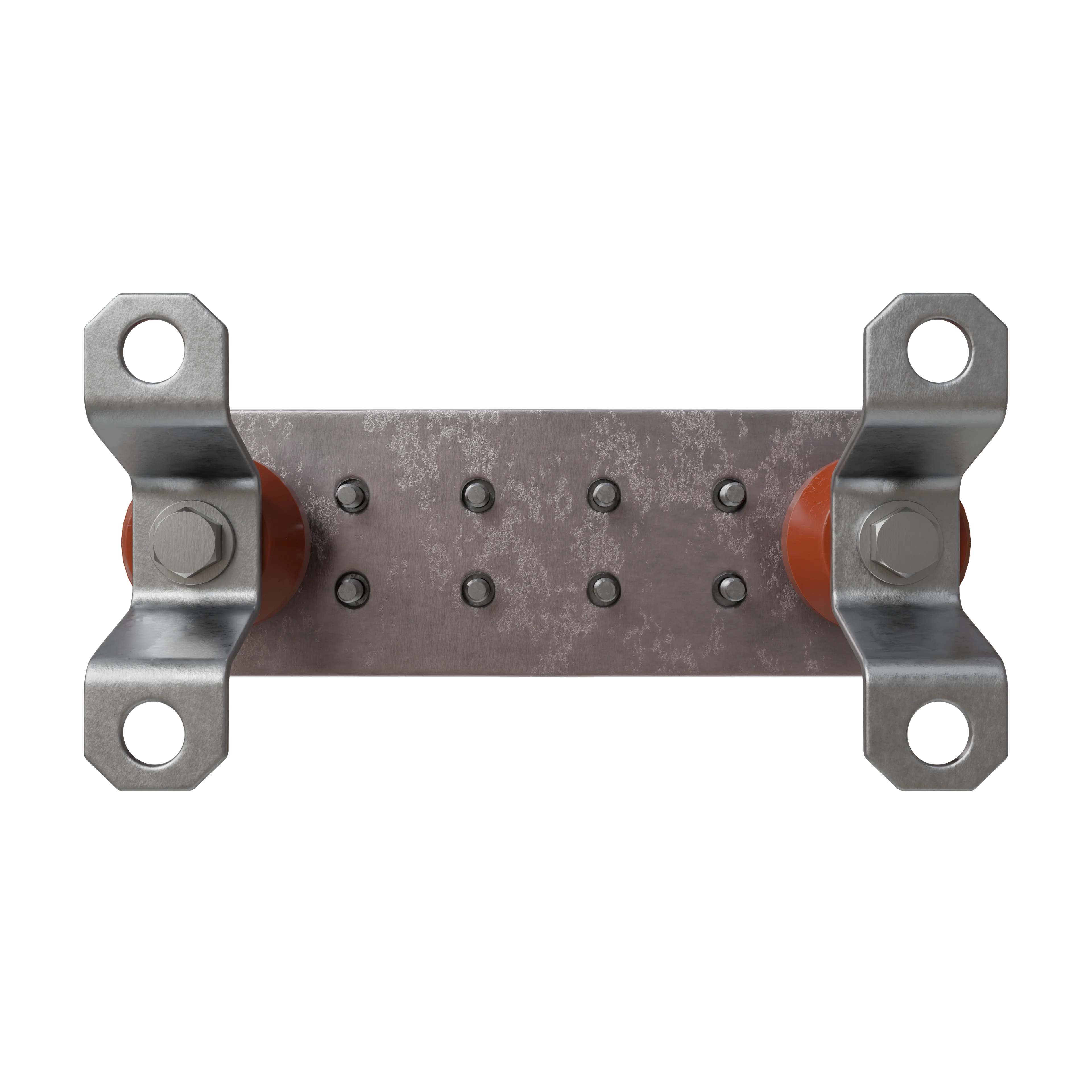

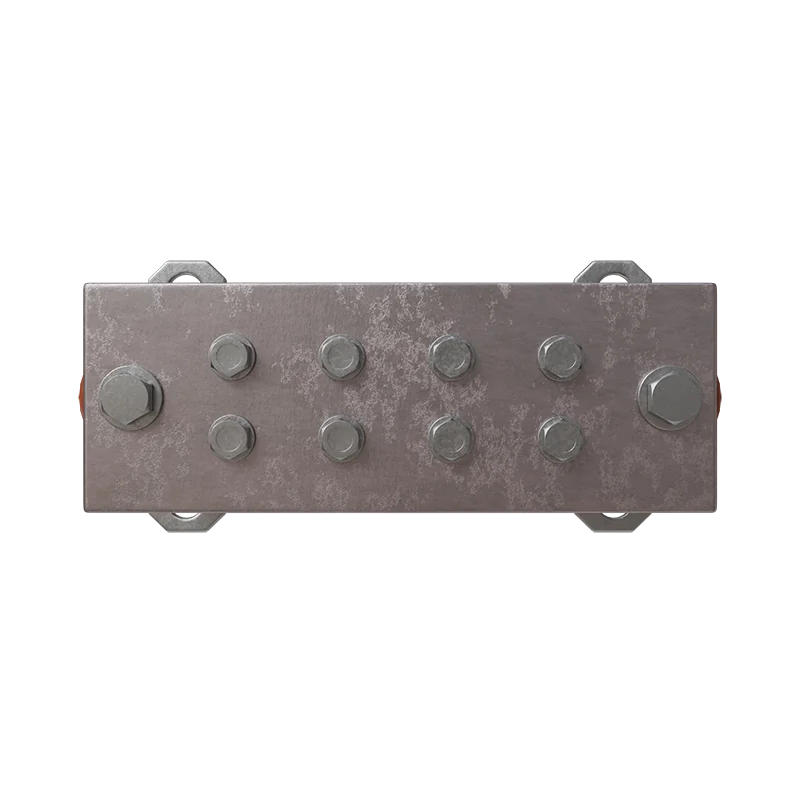

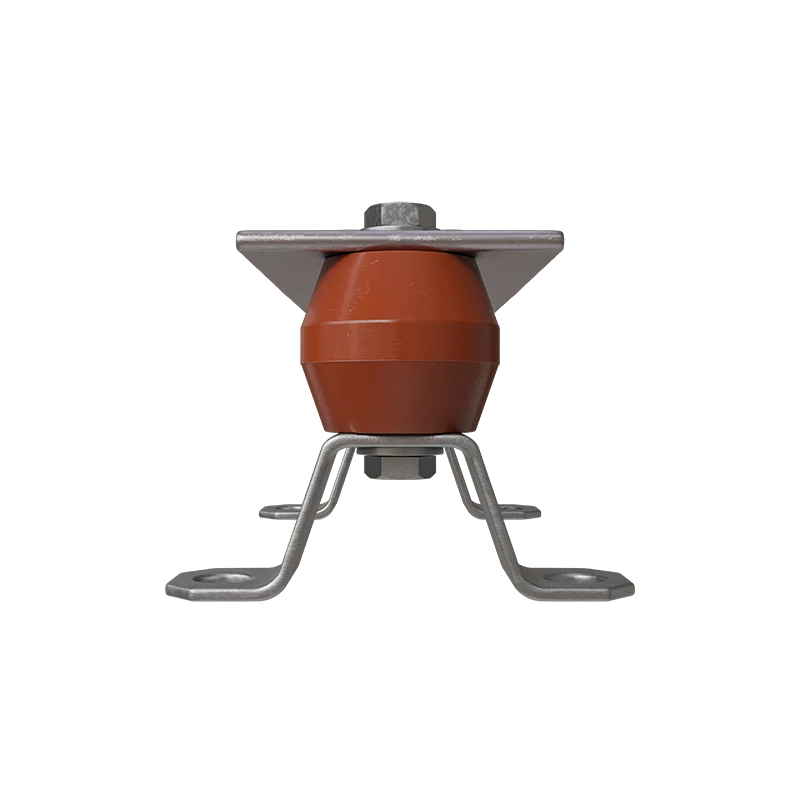

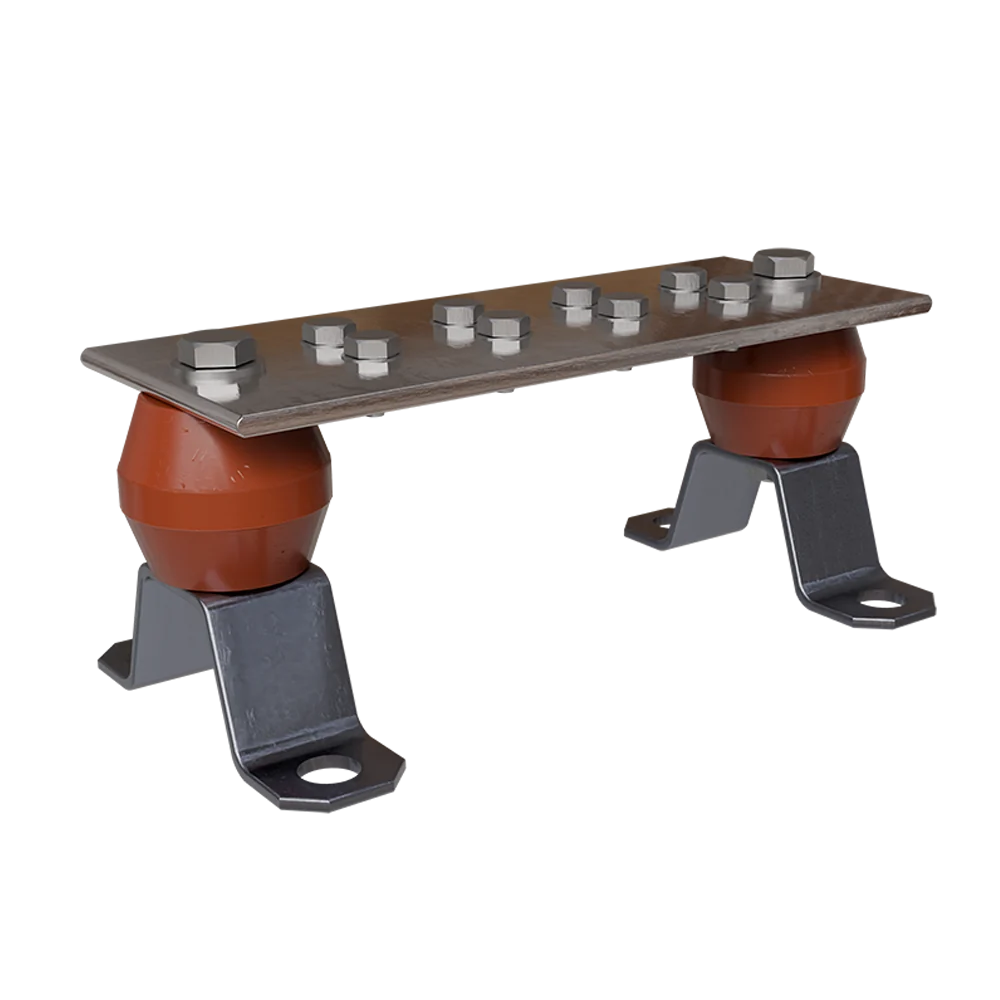

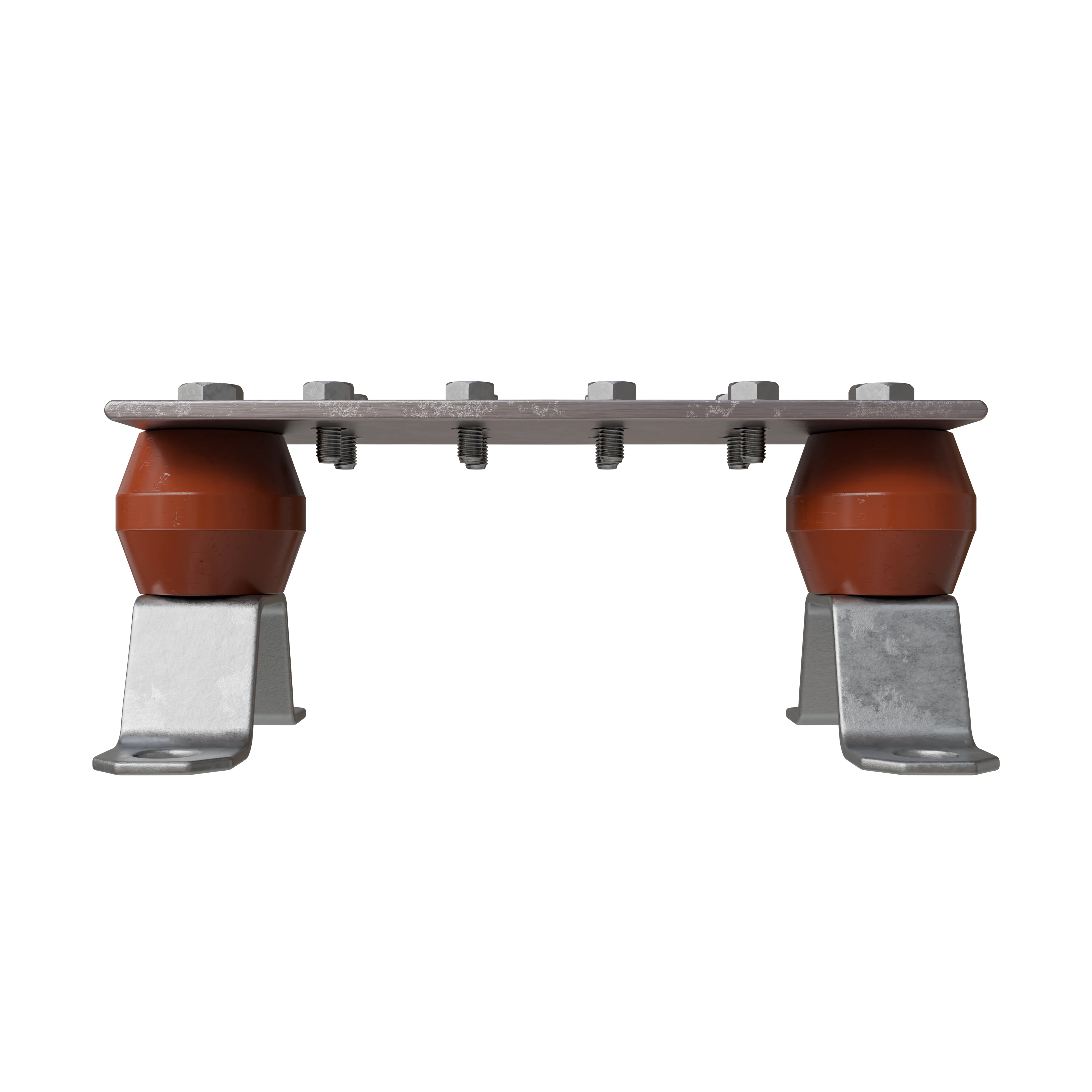

TGBUSG12-ET Tinned Anti-vandal Bonding Bar
Tinned anti-vandal bonding bar for grounding systems, designed to protect and distribute grounding connections with enclosure, insulators and hardware.
Main features
- Ensures electrical continuity and current-carrying capacity.
- Facilitates inspection and maintenance of grounding connections.
- Ready to install, avoiding field assembly or drilling.
- Compatible with mechanical or compression connectors.
Detailed technical data
| Brand | Total Ground |
|---|---|
| Category | Grounding |
| Subcategory | Grounding solution |
| Family | Tinned Anti-vandal Bonding Bars |
| Model | TGBUSG12-ET |
| Application | Equipotential Bonding and Land Distribution |
| Configuration | Tie bar |
| Compatibility | Total Ground grounding solutions |
| Bar sizes | 200 x 50.8 x 6.4 mm / 200 x 76.2 x 6.4 mm / 200 x 76.2 x 12.7 mm |
| Enclosure size | 200 x 300 x 120 mm / 200 x 300 x 400 mm |
| Current capacity | 940 A / 1300 A / 1850 A |
| Availability | Immediate / upon request |
| Warranty | Consult the technical sheet |
