VIBRATION AND TEMPERATURE SENSOR

CHECKTHOR

Monitor. Detect.
Prevents.

Triaxial vibration sensor (X, Y, Z) with vibration sensor
infrared temperature, designed to collect
real-time data and prevent machinery failures
criticism. Work together with TGONE PRO for
Intelligent analysis and timely alerts.

Vibration
triaxial
(X,Y,Z)

sensor
temperature
infrared (IR)

Connectivity
LoRaWAN
and WiFi

Encryption
128 bit

Facility
non-invasive

Easy and fast
facility

Design
compact and
resistant

Algorithm
smart with
TGONE PRO

DESCRIPTION

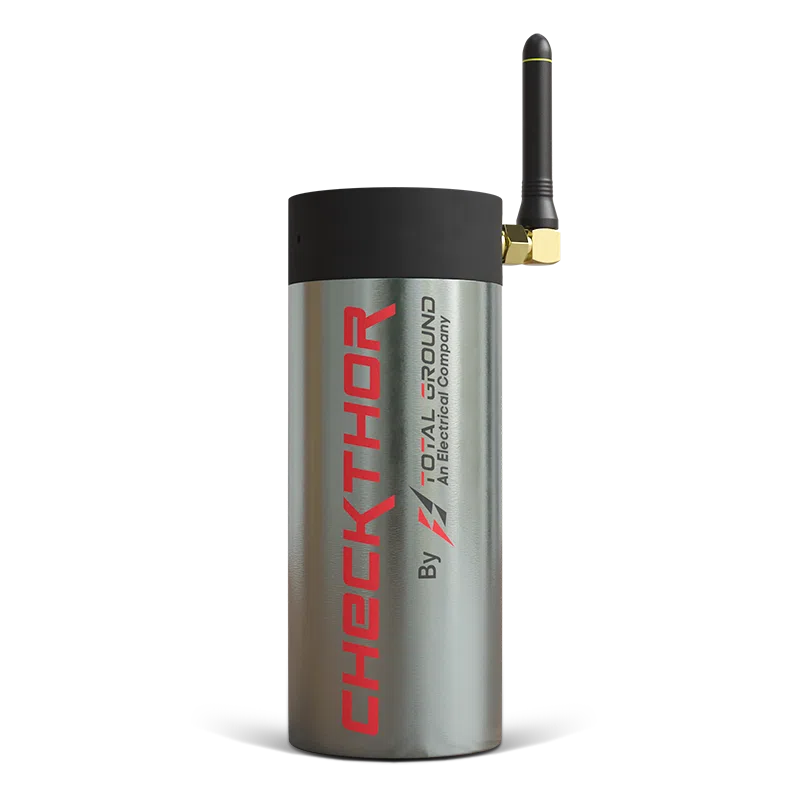

It is a built-in triaxial vibration sensor with infrared temperature sensor. Designed to collect information regarding vibration/temperature generated by machines, for analysis and interpretation.

Checkthor in conjunction with TGONE PRO, they have everything you need to start collecting data.

Checkthor is a device that can incorporate two types of wireless communication such as:

LoRaWAN.
WiFi.

In addition, it has a built-in IR temperature sensor to complement the vibration measurements.

BENEFITS

Online access to data through TGONE PRO.
Its installation is not invasive for the machinery to be monitored.
Its installation is easy and quick.
Working together with TGONE PRO, it incorporates an intelligent algorithm capable of processing all the information generated, creating normal operation windows and giving timely warning of possible failures.
Compact and resistant design.
Sending information is secure thanks to its 128-bit LoRaWAN encryption.

APPLICATIONS

All types of compressors

Bombs

Engines

Hydraulic systems

TECHNICAL SPECIFICATIONS

Internal sensor	Low noise MEMs sensor
X,Y,Z Sensitivity	100mV/g
Frequency range	6kHz
dynamic range	15kHz
Resonance frequency	TGOne Pro
Wireless protocol	LoRaWAN/WiFi
Software	TGONE PRO
Operating distance	Up to 2 km (LoRaWAN) / Depending on WiFi network
Feeding	Rechargeable battery, 3 - 7 V.
Fixation	Magnetic, threaded
Weight	0.350 g
Dimensions	50mm diameter x 150mm long
Security	16g
Encryption	128 bit
